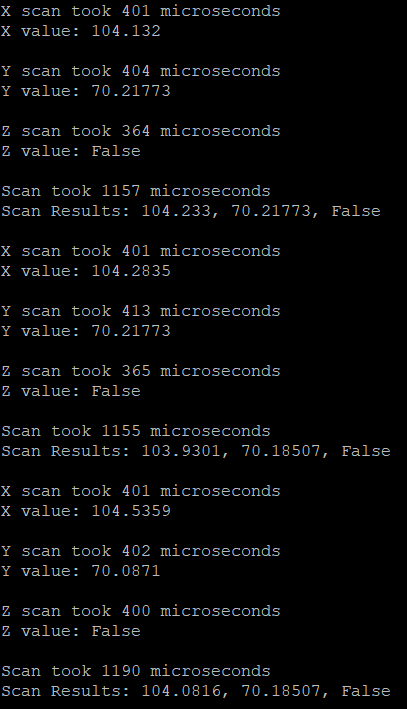

Test 1 Speed Test of Scans
This image shows 3 sets of X, Y, Z, and 3-axis scans with the amount of time it takes to complete.

Each individual scan takes around 400 microseconds while the 3-axis scan takes less than 1200 microseconds.

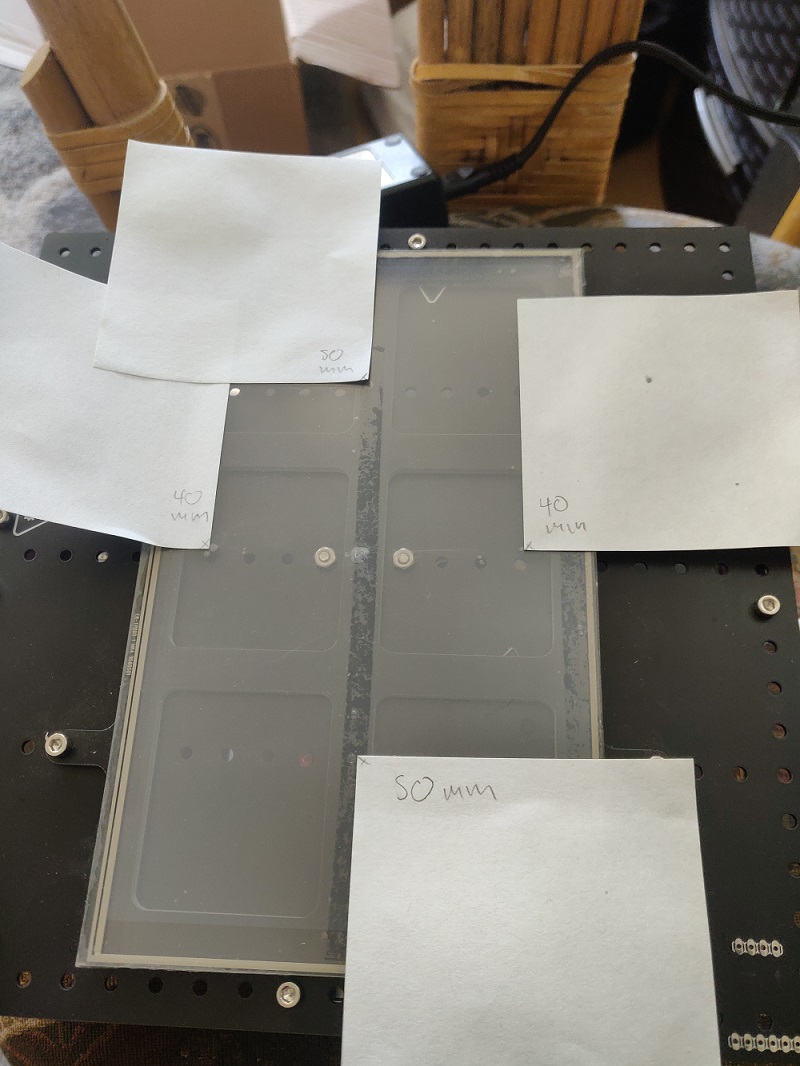

Test 2 Measurement Accuracy Test
This image shows the setup used to test the accuracy of measurements across the board. It shows four points around the center. These four points as well as the center were measured by pressing on the screen with a fine tip tool. The center point was accurate within a millimeter and the surrounding points were accurate within 1-2 millimeters.
